Technical Specifications
Electrical Characteristics
Interface Supported	USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±5%
Current	Max:335mA
Optical Characteristics
Image Sensor	CMOS Array Sensor
Sensor Resolution	640 X 480 Pixels
Light Aimer	617nm LED
Indication	Buzzer & LED
Trigger	Auto-sense, Button
Decoding speed	60FPS
Performance Characteristics
Scanning Angle	Pitch angle:±55°;Skew angle:±55°;Tilt angle:±360°
Field of View	43° H),33° V)
Min Resolution	1D?4mil, 2D?5mil
Min .PCS value	?20% UPC/EAN 13?13mil?
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D: Codabar,Code39,Interleaved2of5,NEC2of5, Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1-DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8, ISSN, ISBN 2D?PDF417, QR Code, Data Matrix, Aztec code, HanXin code, Maxi Code, Micro PDF417, GS1 Composite
Physical Characteristics
Dimensions	85mm85mm140mm(LWH)
Weight	370g
Indicator	Beeper, LED
Environmental Characteristics
Temperature	-20°?60°C (operation) -30°?70°C (storage)
Humidity	Relative humidity: 5% to 95% (no condensation)
Shock Drop Test	1.5m drop onto concrete surface

Decoding Depth of Field

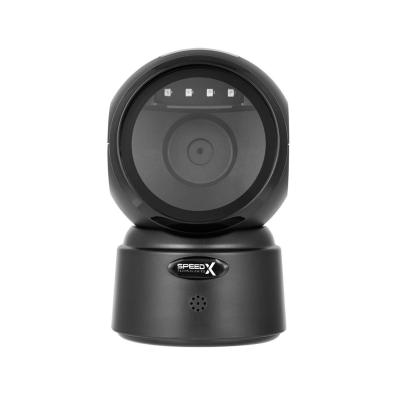

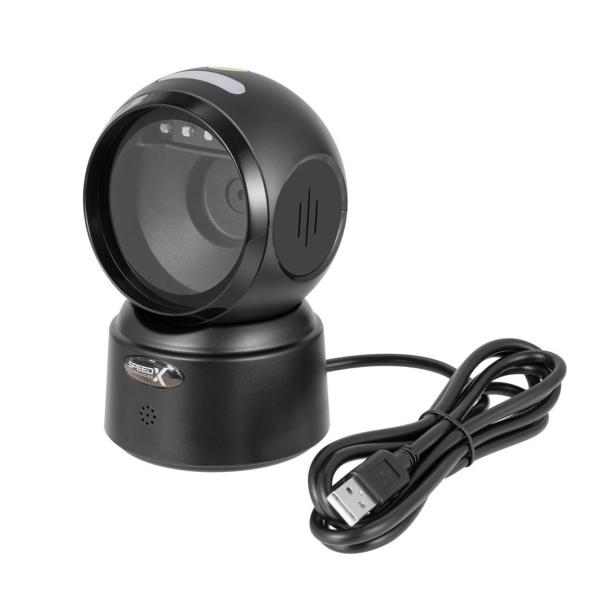

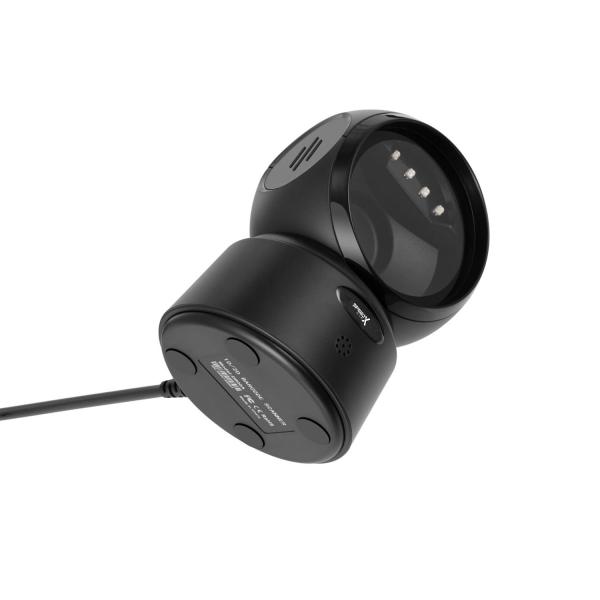

SPEEDX SP-9260 2D CMOS WIRED DESKTOP BARCODE SCANNER
